WhatsApp:+852-69577225| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB1816-0000-000N0UN230ULED COB CXB1816 3000K WHT SMD |
2,433 | $6.26 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 450mA | 85°C | 35V | 105 lm/W | 900mA | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|

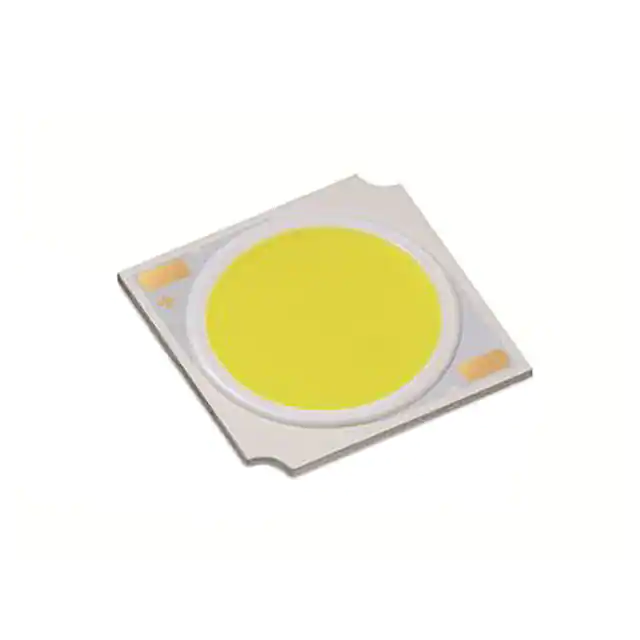

CLU026-1203C1-50AL7G4COB LED 5000K 70CRI 1447LM |
2,192 | $6.26 |
RFQ |
Datasheet |
Tray | CLU026 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1447lm (Typ) | 270mA | 85°C | 34.6V | 155 lm/W | 690mA | 70 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU026-1203C1-303M2G2COB LED 3000K 80CRI 1278LM |
3,661 | $6.26 |
RFQ |
Datasheet |
Tray | CLU026 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1278lm (Typ) | 270mA | 85°C | 34.6V | 137 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU026-1203C1-403M2G2COB LED 4000K 80CRI 1320LM |
3,729 | $6.26 |
RFQ |
Datasheet |
Tray | CLU026 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1320lm (Typ) | 270mA | 85°C | 34.6V | 141 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU026-1203C1-653M2G2COB LED 6500K 80CRI 1367LM |
3,663 | $6.26 |
RFQ |
Datasheet |
Tray | - | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 1367lm (Typ) | 270mA | 85°C | 34.6V | 146 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU026-1203C1-303H5G3COB LED 3000K 90CRI 1061LM |
3,128 | $6.26 |
RFQ |
Datasheet |
Tray | CLU026 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1061lm (Typ) | 270mA | 85°C | 34.6V | 114 lm/W | 690mA | 90 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU026-1203C1-303H7G5COB LED 3000K 97CRI 959LM |
2,650 | $6.26 |
RFQ |
Datasheet |
Tray | CLU026 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 959lm (Typ) | 270mA | 85°C | 34.6V | 103 lm/W | 690mA | 97 (Typ) | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
CLU028-1203C4-30AL7K3COB LED 3000K 70CRI |
3,866 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1428lm (Typ) | 270mA | 85°C | 34.6V | 153 lm/W | 690mA | 70 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU028-1203C4-503M2K1COB LED 5000K 80CRI |
3,380 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1414lm (Typ) | 270mA | 85°C | 34.6V | 151 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU028-1203C4-653M2K1COB LED 6500K 80CRI |
3,302 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 1439lm (Typ) | 270mA | 85°C | 34.6V | 154 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU028-1203C4-40AL7K3COB LED 4000K 70CRI |
2,368 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1476lm (Typ) | 270mA | 85°C | 34.6V | 158 lm/W | 690mA | 70 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU028-1203C4-303H7K4COB LED 3000K 97CRI |
3,937 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1019lm (Typ) | 270mA | 85°C | 34.6V | 109 lm/W | 690mA | 97 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
|
CLU028-1203C4-403H7K4COB LED 4000K 97CRI |
2,581 | $6.26 |
RFQ |
Datasheet |
Tray | CLU028 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1049lm (Typ) | 270mA | 85°C | 34.6V | 112 lm/W | 690mA | 97 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia |
|
CXA1830-0000-000N0HU20E5LED COB CXA1830 NEUTRAL WHITE SQ |
3,093 | $6.27 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
CXA2520-0000-000N0UN440HLED ARRAY XLAMP CXA2520 19MM WHT |
3,722 | $6.29 |
RFQ |
Datasheet |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0UP250HLED ARRAY XLAMP CXA2520 19MM WHT |
3,329 | $6.29 |
RFQ |
Datasheet |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0YM227HLED ARRAY XLAMP CXA2520 19MM WHT |
3,482 | $6.29 |
RFQ |
Datasheet |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 550mA | 85°C | 36V | 72 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0YN235HLED ARRAY XLAMP CXA2520 19MM WHT |
3,420 | $6.29 |
RFQ |
Datasheet |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 550mA | 85°C | 36V | 83 lm/W | 1.25A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
SPHCW1HDND25YHQT3HLED COB LCO33B 5700K SQUARE |
2,656 | $6.31 |
RFQ |
Datasheet |
Tray | LC033B | Not For New Designs | Chip On Board (COB) | White, Cool | 5700K | - | Square | 4949lm (4792lm ~ 5105lm) | 900mA | 25°C | 35.5V | 155 lm/W | 1.62A | 80 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia |
|
|
SPHCW1HDND25YHR33HLED COB LCO33B 5000K SQUARE |
3,021 | $6.31 |
RFQ |
Datasheet |
Tray | LC033B | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4949lm (4792lm ~ 5105lm) | 900mA | 25°C | 35.5V | 155 lm/W | 1.62A | 80 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia |
