WhatsApp:+852-69577225| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1830-0000-000N00T435GLED COB CXA1830 3500K WHITE SMD |
2,284 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0HT450GLED COB CXA1830 5000K WHITE SMD |
2,799 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0US240GLED COB CXA1830 4000K WHITE SMD |
3,142 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 36V | 100 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0US450GLED COB CXA1830 5000K WHITE SMD |
3,315 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 800mA | 85°C | 36V | 107 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YQ427GLED COB CXA1820 2700K WHITE SMD |
3,149 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 800mA | 85°C | 36V | 81 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YR230GLED COB CXA1830 3000K WHITE SMD |
3,800 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 36V | 87 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA1830-0000-000N0YR435GLED COB CXA1830 3500K WHITE SMD |
3,551 | $5.17 |
RFQ |
Datasheet |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 800mA | 85°C | 36V | 93 lm/W | 1.4A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|

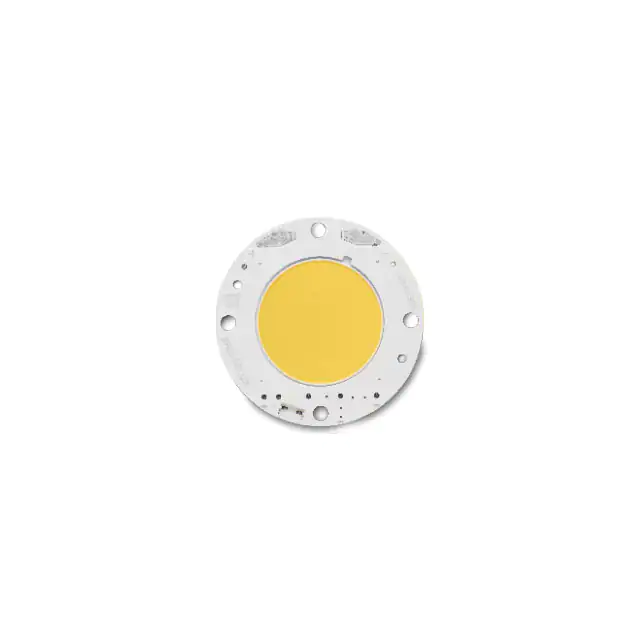

BXRC-27H2000-D-73LED COB WARM WHT 2700K ROUND |
2,357 | $5.17 |
RFQ |
Datasheet |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1674lm (Typ) | 500mA | 85°C | 30.9V | 108 lm/W | 1A | 97 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
CXM-18-40-80-36-AA00-F2-3LED COB WHT 17.5MM 4000K 80CRI |
3,130 | $5.35 |
RFQ |
Datasheet |
Tray | CXM-18 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 800mA | - | 35V | - | 1.6A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
CXM-18-50-80-36-AA00-F2-5LED COB WHT 17.5MM 5000K 80CRI |
2,579 | $5.35 |
RFQ |
Datasheet |
Tray | CXM-18 | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 800mA | - | 35V | - | 1.6A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
CXM-18-35-90-36-AA00-F2-3LED COB CXM18 WARM WHT SQ |
3,506 | $5.35 |
RFQ |
Datasheet |
Tray | CXM-18 | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3010lm (Typ) | 800mA | 85°C | 35V | 108 lm/W | 1.6A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
|
CXM-18-40-90-36-AA00-F2-3LED COB CXM18 NEU WHITE SQ |
3,795 | $5.35 |
RFQ |
Datasheet |
Tray | CXM-18 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3110lm (Typ) | 800mA | 85°C | 35V | 111 lm/W | 1.6A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia |
|
SPHWHAHDNK27YZT3D2LED WHITE COB LC040D |
2,455 | $5.44 |
RFQ |
Datasheet |
Tray | LC040D Gen2 | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5266lm (Typ) | 1.08A | 85°C | 34.6V | 141 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNK27YZU3D2LED WHITE COB LC040D |
2,891 | $5.44 |
RFQ |
Datasheet |
Tray | LC040D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5152lm (Typ) | 1.08A | 85°C | 34.6V | 138 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNK27YZV3D2LED WHITE COB LC040D |
3,088 | $5.44 |
RFQ |
Datasheet |
Tray | LC040D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5024lm (Typ) | 1.08A | 85°C | 34.6V | 134 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
|
SPHWHAHDNK27YZW3D2LED WHITE COB LC040D |
2,770 | $5.44 |
RFQ |
Datasheet |
Tray | LC040D Gen2 | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4755lm (Typ) | 1.08A | 85°C | 34.6V | 127 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia |
|
BXRC-27E2000-D-72LED COB VERO 13 2700K ROUND |
2,585 | $5.17 |
RFQ |
Datasheet |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 2129lm (Typ) | 500mA | 85°C | 30.9V | 138 lm/W | 1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27G2000-D-72LED COB VERO 13 2700K ROUND |
2,616 | $5.17 |
RFQ |
Datasheet |
Tray | Gen 7 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1774lm (Typ) | 500mA | 85°C | 30.9V | 115 lm/W | 1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-27H2000-B-72VERO 13B WARM WHITE LED ARRAY |
3,324 | $5.17 |
RFQ |
Datasheet |
Tray | Gen 7 Décor Series™ | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 1643lm (Typ) | 450mA | 85°C | 34.1V | 107 lm/W | 900mA | 97 | 120° | - | 36.20mm Dia | 1.90mm | 13.20mm Dia |
|
|
BXRC-30A2001-D-73LED COB VERO 13 3000K ROUND |
2,772 | $5.17 |
RFQ |
Datasheet |
Tray | Décor Series™ Class A Vero® 13 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1716lm (Typ) | 500mA | 85°C | 30.9V | 111 lm/W | 1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia |
