WhatsApp:+852-69577225MCP23S17 Expander: Features, Pinout, and Datasheet Overview
12/3/2024 1:24:27 PM
The MCP23S17 is a 16-bit I/O expander that enhances I²C and SPI applications with flexible configuration and expanded pin control. This article explores its features, pinout, and actual uses, showing how it simplifies circuit design and boosts alteration. Discover how the MCP23S17 can elevate your projects!

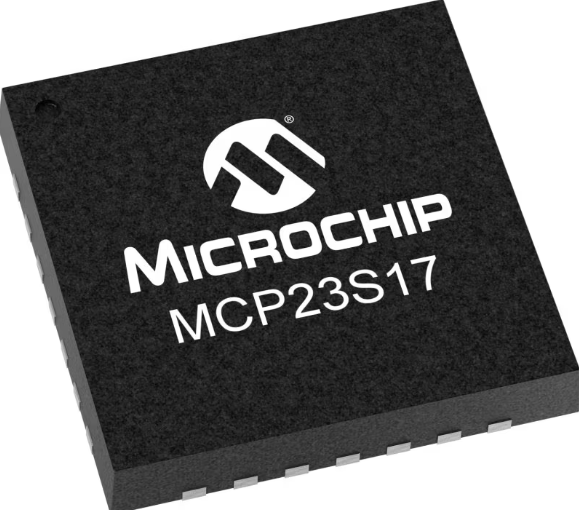

Overview of MCP23S17
The MCP23S17 family offers 16-bit I/O expansion for I²C and SPI applications, differentiated by interface type: I²C for MCP23017 and SPI for MCP23S17. These devices include 8-bit configuration registers for inputs, outputs, and polarity, allowing system masters to configure I/O settings. The two 8-bit ports, PORTA and PORTB, can function individually or together, controlled via the IOCON.BANK setting. Interrupt functionality is provided by two pins, INTA and INTB, which can operate linked to their respective ports or together if any port triggers an interrupt under conditions such as input state changes from its register setting or a predefined value in the DEFVAL register. An Interrupt Capture register logs the port values at the moment of an interrupt, and a Power-on Reset (POR) feature resets all device settings upon power-up. Device addresses are set using hardware address pins.
MCP23S17 Pin Configuration
Enhancing I/O Capabilities Using the MCP23S17
The MCP23S17 I/O expander presents an creative approach for amplifying the input/output versatility of PIC microcontrollers. This expander becomes a favored choice when native GPIO resources fall short in meeting application demands. Its compatibility with the SPI interface allows for orchestrating up to eight expanders through address pin manipulation, offering considerable growth potential. Incorporating the MCP23S17 with the PIC 16F877A involves a thoughtful setup of `PORTA` for input through SPST switches, efficiently utilizing internal pull-ups to ensure dependable input readings. Concurrently, `PORTB` caters to output functionalities, majorly managing LEDs where their brightness is a direct response to switch activations. This dynamic interplay between input mechanisms and LED outputs underscores the hands-on essence of control elements in embedded systems.
Note: In the circuit diagram, the connections for VDD, VSS, and the MCP23S17 from the PIC Microcontroller are not shown. VSS must be connected to 0V and VDD to +5V. In the setup, activating a switch will turn off its corresponding LED, while deactivating it will turn the LED on. The address of the MCP23S17 is set to 0, as all three of its address pins are connected to the ground.
Applications of MCP23S17
Embedded Design & Development
The MCP23S17 is often employed in embedded systems to expand the I/O capabilities of microcontrollers. It simplifies the design of systems requiring multiple GPIOs without increasing the microcontroller's pin count, making it best possible for prototyping, small-scale projects, and IoT devices.
Automation & Process Control
This device is highly suited for industrial automation, where it is used to interface with sensors, relays, and actuators. Its reliable communication via SPI and interrupt capabilities make it a main component in monitoring and controlling processes, such as in manufacturing equipment, conveyor systems, and smart factory setups.
Manufacturer of MCP23S17
Microchip Technology Incorporated is a global leader in secure and connected embedded system solutions, serving over 120,000 customers across industries like automotive, industrial, and communications. Headquartered in Chandler, Arizona, the company prioritizes technological alteration, exceptional support, and on-time delivery, simplifying design processes and accelerating market readiness. Microchip's products enhance performance, integrate seamlessly with existing systems, and shorten development cycles, enabling rapid alteration.
Overview of MCP23S17
The MCP23S17 family offers 16-bit I/O expansion for I²C and SPI applications, differentiated by interface type: I²C for MCP23017 and SPI for MCP23S17. These devices include 8-bit configuration registers for inputs, outputs, and polarity, allowing system masters to configure I/O settings. The two 8-bit ports, PORTA and PORTB, can function individually or together, controlled via the IOCON.BANK setting. Interrupt functionality is provided by two pins, INTA and INTB, which can operate linked to their respective ports or together if any port triggers an interrupt under conditions such as input state changes from its register setting or a predefined value in the DEFVAL register. An Interrupt Capture register logs the port values at the moment of an interrupt, and a Power-on Reset (POR) feature resets all device settings upon power-up. Device addresses are set using hardware address pins.
MCP23S17 Pin Configuration
Enhancing I/O Capabilities Using the MCP23S17
The MCP23S17 I/O expander presents an creative approach for amplifying the input/output versatility of PIC microcontrollers. This expander becomes a favored choice when native GPIO resources fall short in meeting application demands. Its compatibility with the SPI interface allows for orchestrating up to eight expanders through address pin manipulation, offering considerable growth potential. Incorporating the MCP23S17 with the PIC 16F877A involves a thoughtful setup of `PORTA` for input through SPST switches, efficiently utilizing internal pull-ups to ensure dependable input readings. Concurrently, `PORTB` caters to output functionalities, majorly managing LEDs where their brightness is a direct response to switch activations. This dynamic interplay between input mechanisms and LED outputs underscores the hands-on essence of control elements in embedded systems.
Note: In the circuit diagram, the connections for VDD, VSS, and the MCP23S17 from the PIC Microcontroller are not shown. VSS must be connected to 0V and VDD to +5V. In the setup, activating a switch will turn off its corresponding LED, while deactivating it will turn the LED on. The address of the MCP23S17 is set to 0, as all three of its address pins are connected to the ground.
Applications of MCP23S17
Embedded Design & Development
The MCP23S17 is often employed in embedded systems to expand the I/O capabilities of microcontrollers. It simplifies the design of systems requiring multiple GPIOs without increasing the microcontroller's pin count, making it best possible for prototyping, small-scale projects, and IoT devices.
Automation & Process Control
This device is highly suited for industrial automation, where it is used to interface with sensors, relays, and actuators. Its reliable communication via SPI and interrupt capabilities make it a main component in monitoring and controlling processes, such as in manufacturing equipment, conveyor systems, and smart factory setups.
Manufacturer of MCP23S17
Microchip Technology Incorporated is a global leader in secure and connected embedded system solutions, serving over 120,000 customers across industries like automotive, industrial, and communications. Headquartered in Chandler, Arizona, the company prioritizes technological alteration, exceptional support, and on-time delivery, simplifying design processes and accelerating market readiness. Microchip's products enhance performance, integrate seamlessly with existing systems, and shorten development cycles, enabling rapid alteration.
