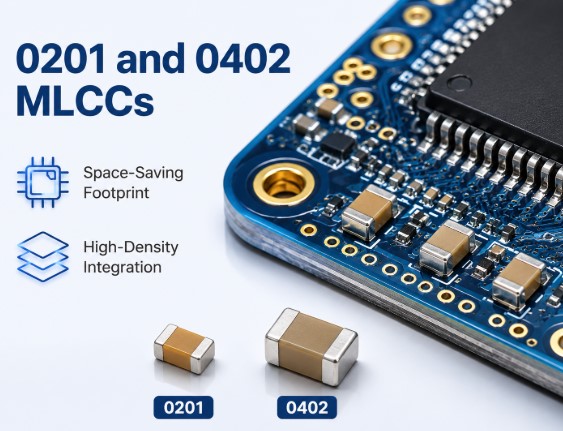

0201 vs 0402 MLCCs: Package Size, DC Bias, Soldering, and Replacement Guide

0201 and 0402 MLCCs save PCB space in compact PCB designs, but small package size also changes how the capacitor performs in real circuits. Limited dielectric volume can reduce capacitance, voltage rating, and DC bias margin, while assembly risks such as tombstoning, solder paste control, and rework damage become harder to ignore. This guide compares 0201 and 0402 ceramic capacitors, model options, layout use, assembly risks, DC bias behavior, and replacement checks.

Why 0201 and 0402 MLCCs Are Used in High-Density PCB Designs

0201 and 0402 MLCCs are used in high-density PCB designs because they reduce the area required for local decoupling and filtering. By occupying less area, they increase component density and create more routing room around dense IC, RF, sensor, and power-management sections. Their small size also allows placement closer to critical IC power pins, improving decoupling performance and reducing parasitic inductance. The trade-off is that smaller packages leave less dielectric volume, which can reduce usable capacitance and make assembly more sensitive.

The table includes 0.1µF 0201, 0.1µF 0402, and 1µF 0402 options commonly used for compact decoupling and local power filtering.

Our website provides 0201 and 0402 MLCC options for compact PCB layouts, local decoupling, and small-package replacement needs. You can review available part numbers, capacitance values, voltage ratings, dielectric types, and package sizes on the product pages. For replacement or alternative model needs, our team can help check suitable small-package MLCC options based on your circuit requirements.

How Package Size Affects Capacitance, Voltage Rating, and DC Bias Performance?

Small-package MLCCs save PCB space, but the smaller body also limits dielectric volume and internal electrode area. This can reduce available capacitance, voltage options, and DC bias margin compared with larger packages. For this reason, 0201 and 0402 ceramic capacitors should be checked by effective capacitance, voltage rating, package size, and assembly limits, not by nominal capacitance alone.

0201 and 0402 MLCCs are used where capacitors must fit close to ICs, sensors, RF modules, or battery-powered circuits. Their small size makes them ideal for smartphones, where multiple capacitors are needed for power management and signal decoupling in tight layouts. They are also commonly found in wearable devices, providing stable power delivery in miniature form factors. In IoT modules, these MLCCs support reliable high-frequency operation and noise suppression for wireless communication. Additionally, sensor modules benefit from their ability to fit near sensitive circuitry, ensuring accurate signal filtering and stable performance without increasing PCB size.

Why MLCC Replacement Should Involve More Than Matching Capacitance Values?

When performing an MLCC replacement, matching the capacitance value alone is not enough. Components with the same capacitance can differ in voltage rating, DC bias performance, dielectric type, and package size, all of which affect circuit behavior. Following a proper 0201 and 0402 MLCC selection guide helps ensure reliable performance and compatibility with the original design.
